VSG2G1 Vector Signal Generator

Status: Sold out

US Mini Spectrum Analyzer TSA12G5

Price: $399 USD (price does not include shipping & handling, tariff, and taxes that are applicable based on your location)

Order Info:

Avialiable on eBay(Click Here).

We do not use eBay Global Shipping Program

We ship world wide!

*If you require overnight shipping or any other custom options on your order please send us a email at [email protected]



Specification:

Frequency Range: 1MHz to 2.2GHz

Output level range: -50dBm~+10dBm (1MHz ~2.2GHz)

Working mode: CW mode, frequency sweeping, frequency hopping, pulse modulation and simultaneous I&Q modulation.

Analog modulation: AM, FM, PM.

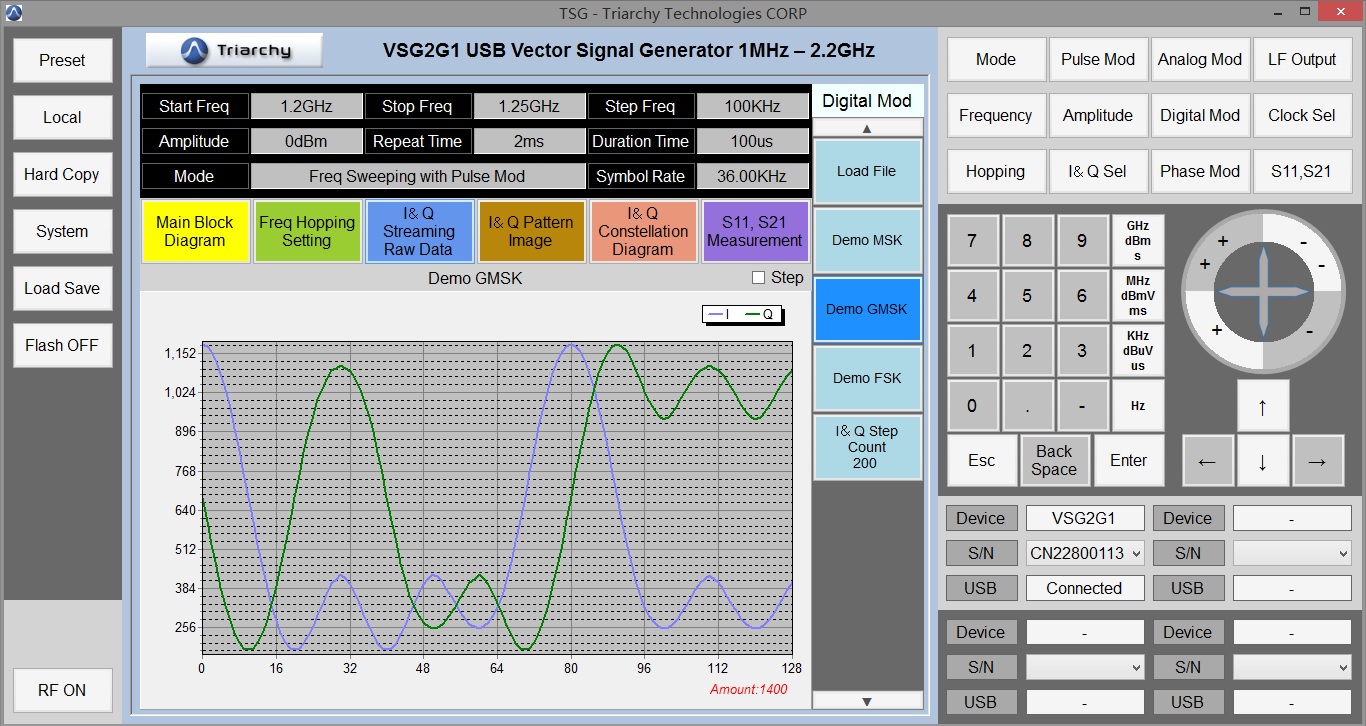

Digital modulation: ASK, FSK, 4FSK, GFSK, MSK, GMSK, SFSK, and more modulation signal based on the I&Q engine.

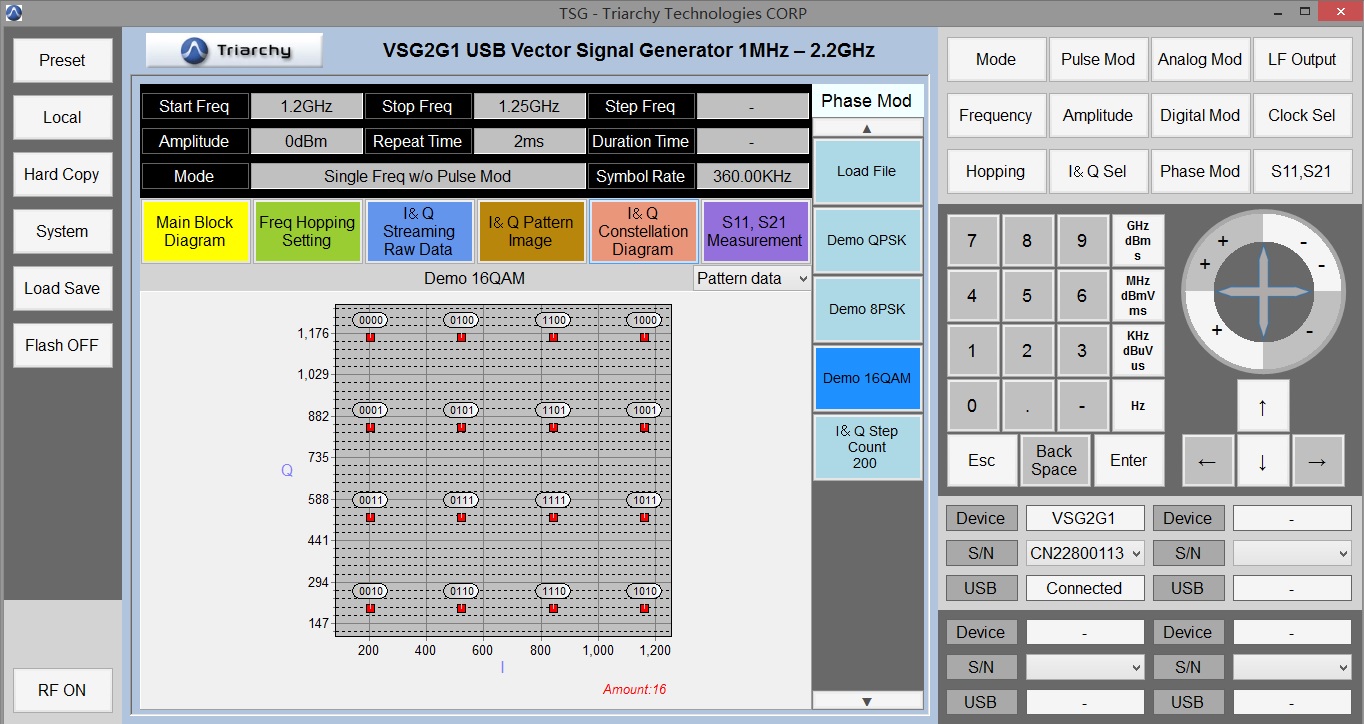

Phase modulation: BPSK, 4PSK, 8PSK, 16QAM, 32QAM, 64QAM and more modulation signal based on the I&Q engine.

LF signal generator: Sin, triangle waveform, arbitrary signal waveform.

Pulse signal generator

Dimensions: 100mm x 25mm x 25mm (L x W x H)



Features:

Probe size USB device, with N connector and solid metal case

I&Q connector provides I&Q input and output

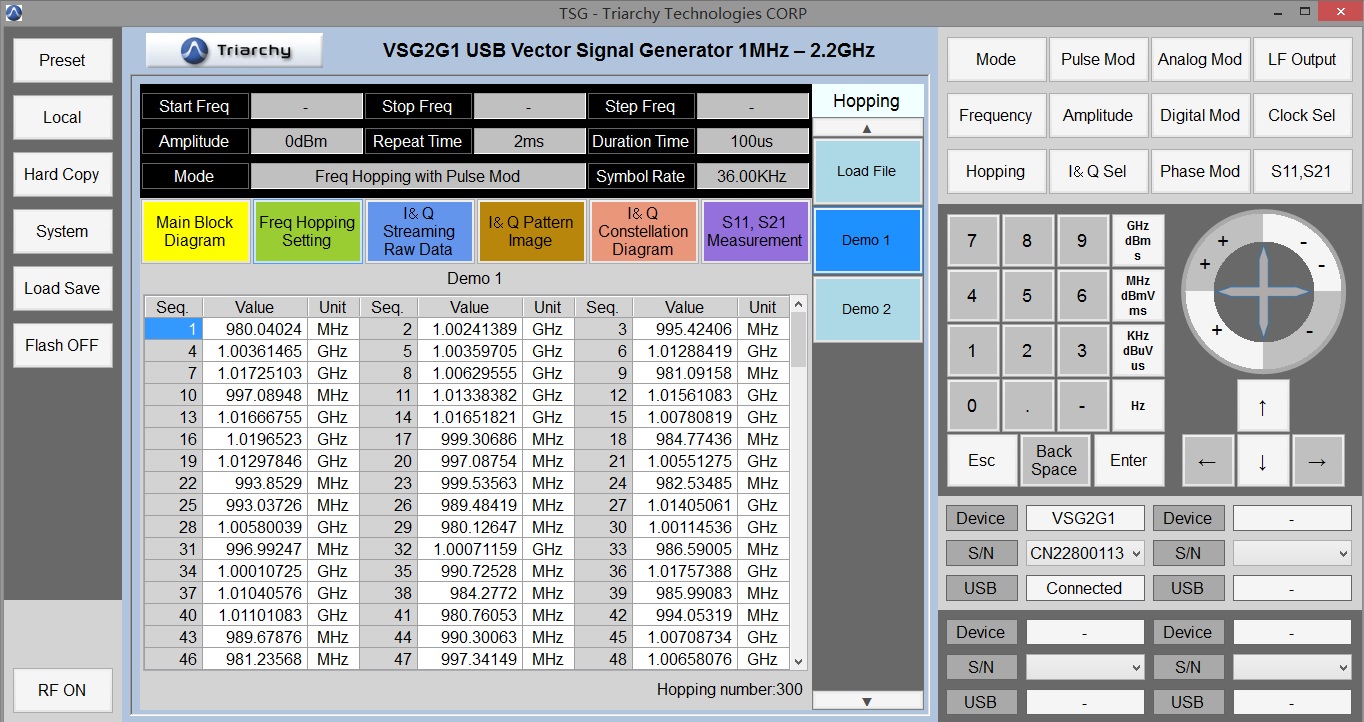

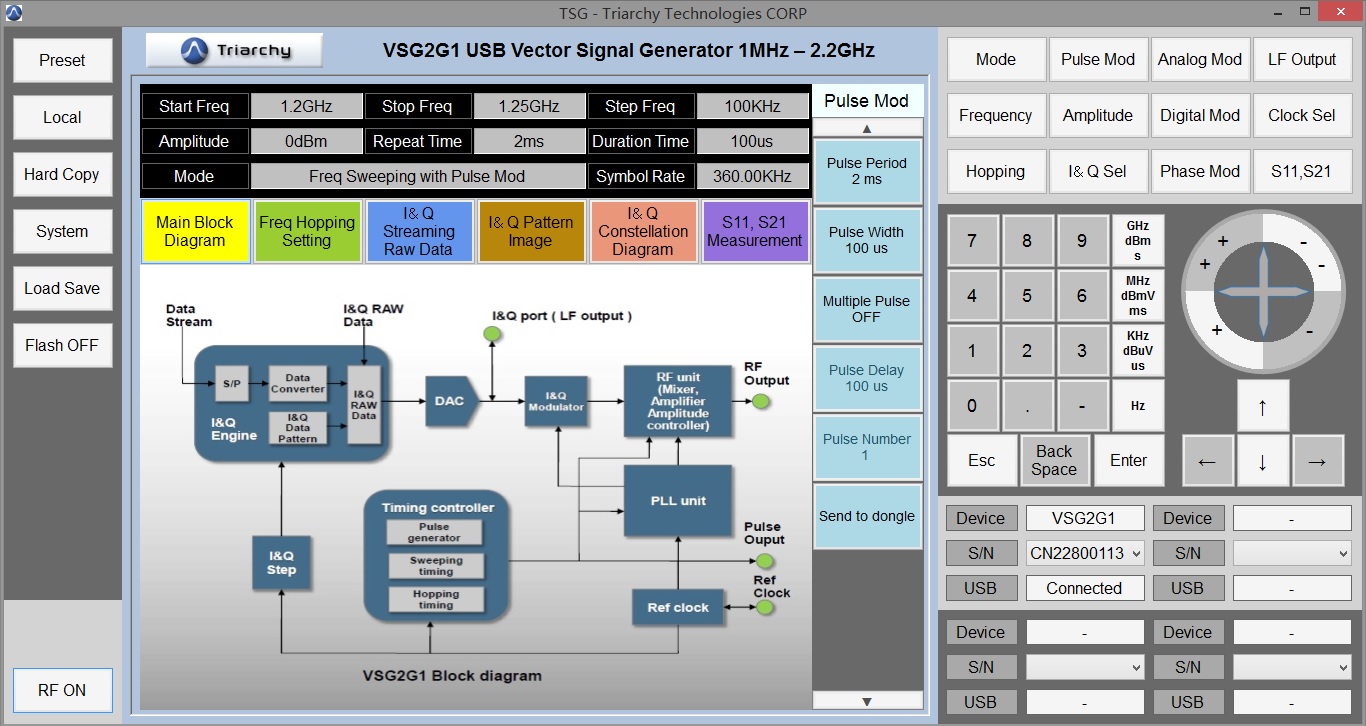

Intuitive PC program GUI inspired by desktop instrument front panel

Provides I&Q engine for easy generation of many useful modulations

Multi-modulation solutions achieving simulation of: TDMA, CDMA , hopping system, and most of the useful systems

Built-in arbitrary function generator to generate LF signal output

Pulse output at rear panel for Synchronization or work as Pulse generator

Extra Low cost, extra low weight, best performance for price

Reference clock input and output

USB power without extra battery pack Standalone working with only 5V power





Gallery



SG





SG





SG





SG





SG





SG





SG





SG





SG





For datasheets and additional info please go to Downloads
